Main technical parameters

Max paper size:                                                  800 x 620 mm

Min paper size:                                                  340 x270 mm

Max cutting size:                                                770 x 600 mm

Die frame inner size:                                             820 x 628 mm

Cutting plate size:                                                826 x 628 mm

Min gripper edge size:                                                  7 mm

Cutting precision:                                                    ≤±0.1 mm

Max cutting pressure:                                                    200 T

Max cutting speed:                                                    7000 S/H

Pre-stacking height:                                                   1150 mm

Delivery stack height:                                                1000 mm

Application:

White board:                                               0.1～2 mm

Corrugated paper:                                        ＜4 mm

Main motor power:                                       11 KW

Total power:                                                16.25 KW

Dimension :                                 【L(+ pre-stacking)x W(+ platform)x H】

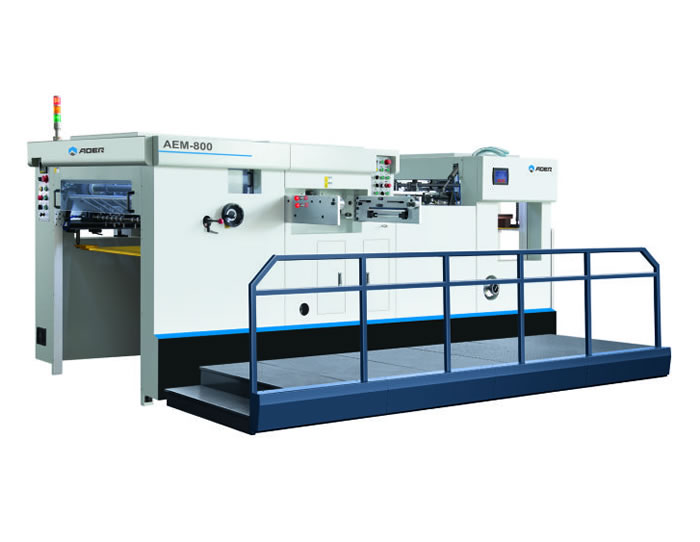

AEM-800:                    4350(+1360) x1900(+1680) x 1880mm

Weight:                                                        9 T
